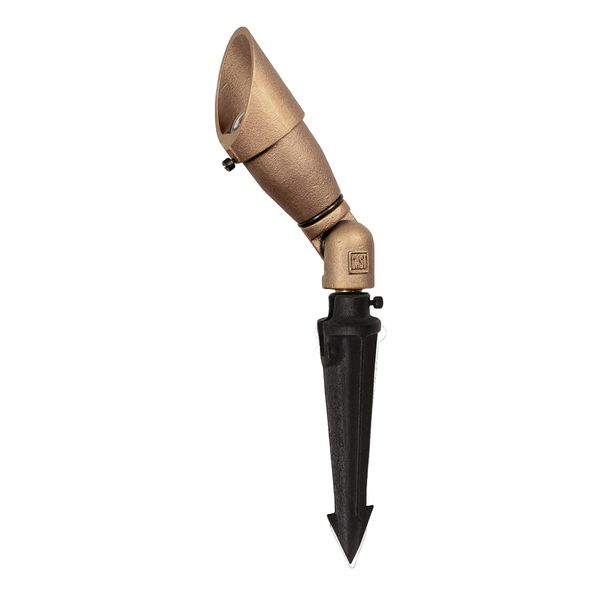

CAST Lighting MR16 Bullet Directional Light CBL1CB

• LED Retrofit for installed bullets. For new installation use CBLED141
• Solid bronze shroud and body; PTFE Coated Eurometal stake
• Extra-long shroud for glare control
• Knuckle adjusts to any angle
• Convex lens to prevent mineral build-up
• Pre-wired with 25’ tin-coated No-Ox® marine grade wire
• High-temp socket with solid nickel contacts
• Includes heat shield to protect socket
• Spider Splice® ready

Construction :

Body : Solid Sand-Cast Bronze

Knuckle : Solid Sand-Cast Bronze, Continuously adjustable, secured with 303 stainless steel Philips Head screw.

Shroud : Solid Sand-Cast Bronze

Locking Ring : Solid brass

Stake : Solid Eurometal PTFE Coated

O-Rings : Silicone Rubber

Lens : Covex borosilicate glass

Socket Assembly : High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring. Aluminum heat reflector

Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.Orientation : Upward only

Lamp/Bulb : MR-16 (not included)

Dimensions and Weight:

Knuckle and Body : 10" x 2.5" fully extended

Stake : 8.5"

Weight : 5 lbs.

Lamp Specifications

Lamp : 12V MR-16 (50W max.)

Lamp not included

Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
