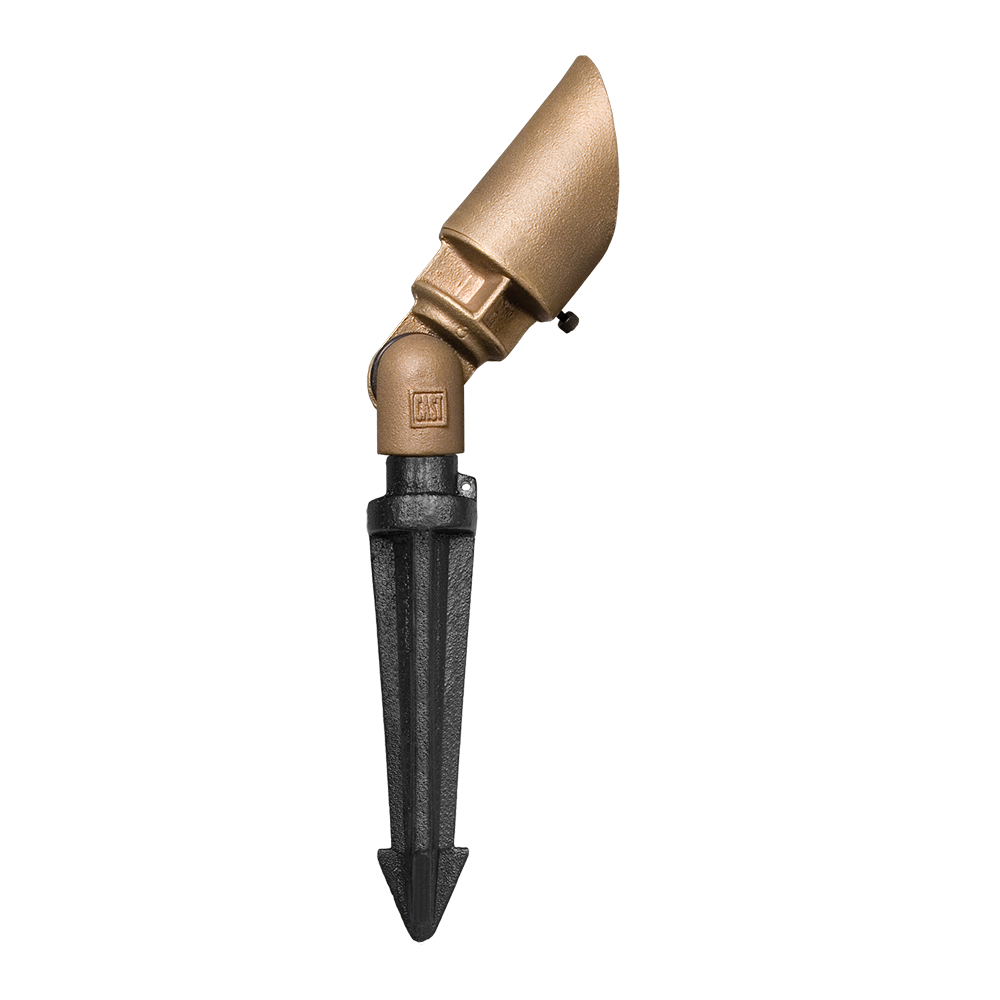

CAST Lighting LED Directional Bullet Light CBLED141

This low voltage LED landscape light combines the rugged solid construction with the industry's most advanced and feature-filled LED module. With just one finish (solid sand-cast bronze), two light levels, and 3 optical beam spreads, this one LED light replaces (and surpasses) the dozens of models from other manufacturers.

Applications

 This low voltage LED landscape light combines the rugged solid bronze construction of the CAST Bullet with the industry's most advanced and feature-filled module. With just one finish (solid sand-cast bronze), two light levels, and 3 optical beam spreads, this one LED light replaces (and surpasses) the dozens of models from other manufacturers. Lifetime warranty on housing and hardware - 5-Years on LED assembly.

Replaceable LED module (MR-16 size) thermally bonded to solid bronze fixture body for optimal heat dissipation. LED engine included with fixture.

Replaceable optics for beam angles of 41 degrees (included), 21 degrees, and 12 degrees (both purchased separately).

LED Sense technology controls forward current to compensate for conditions of extreme ambient heat.

Accepts input voltages between 9.6v and 28.8v AC for maximum system design flexibility.

Will not cause electromagnetic interference (EMI)

Automatic recognition and compensation for varied magnetic and electronic transformer types.

Dimmable with standard low-voltage phase dimmers.

Warm white color temperature (2,700K) and high color rendering index (85 CRI) that closely matches incandescent lighting.

L70 of 60,500 hrs.

UL/CSA/RoHS Recognized, FCC Class A Conducted and Radiated Emissions compliant.


Specifications

Construction : Solid Bronze body, shroud, knuckle, shroud; cast-metal stake; flat tempered glass lens

Orientation : Upward only

Lamp/Bulb : LED Module with 41degrees optics, switches between 6.2W & 9.3W (LED engine included with fixture)

12 Degree and 21 Degree optics are available, giving you the option to narrow the beam spread of the fixture, please call our office if you need to order optic packages.

Dimensions:

Body: 2.5" wide x 9" tall (fully extended)

Stake: 8.5" long x 4.6"

Construction:

Body and Shroud: Solid sand-cast bronze

Stake : Solid PTFE Coated Eurometal

Socket : High-temperature MR-16 socket

Glass : Flat, tempered, hardened, crystal-clear glass

Retaining Screw : Stainless steel

Internal Wiring : Tin-coated wire, crimped and sealed connections, protected with fiberglass sleeving

External Wire : Includes 25 ft. #18/2 tin-coated lead wire

LED Module : Secured with two stainless steel screws to fixture base


LED Life: Estimated Life (L70: 60,500 hrs., 5-year warranty)

LM-80 tested

Power Specifications:

Input Power (Low Setting) : AC - 6.2 - 7.0w (0.92 - 0.78 power factor); DC - 4.9 - 5.0w (1.0 power factor)

Input Power (High Setting) : AC - 9.3 - 9.7w (0.92 - 0.81 power factor); DC - 7.1w (1.0 power factor)

Apparent Power (to calculate voltage loss and transformer sizing) (Low Setting) : AC - 6.7 - 9.0va

Apparent Power (to calculate voltage loss and transformer sizing) (High Setting) : AC - 10.1 - 12.0va

Input Voltage : Accepts 9.6 to 28.8 volts (AC); 12 to 28.8v DC

Polarity Independent : Yes

Electrostatic Discharge (ESD) Protection : Protected to +/- 4kV and 6kV contact discharge; +/- 8 kV and +/- 10kV air gap discharge

Light Output :

Light output (High/Low) : 391/290 lumens

Luminous Efficacy (High/Low) : 41/44 lumens per watt

Color Temperature (CCT) : 2,700degrees K (warm white)

Color Rendering Index (CRI) : 85 typical



Operating Conditions :

Operating Temperature : -40degrees to 55degrees C

Thermal Management : Module is thermally bonded to fixture body;

Junction Temperature (typical) : 63.0degrees C @25degrees C ambient

Component Details:

No electrolytic capacitors (except for capacitors used to filter EMI - not in drive current)

LEDSense technology - patented process to reduce forward current if unit exceeds 80 degrees C. - prevents overheating of module in extreme conditions

Listings :

Emission Standards : FCC Class A conducted and radiated

UL 8750 recognized : CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
