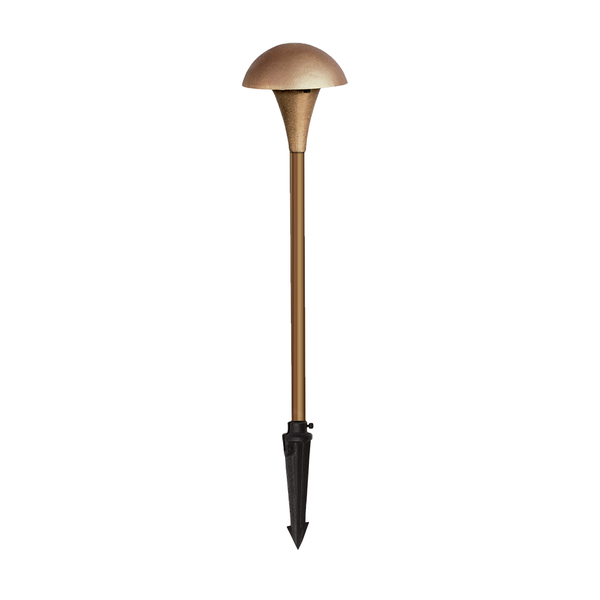

CAST Lighting Small Mushroom Path/Area Light (LED or Halogen)
Cast Lighting
Includes 25-ft marine-grade wire and 10,000-hr. 25-watt krypton-halogen lamp (bulb).
- Lifetime Warranty
- Solid bronze hat and vase; PTFE Coated Eurometal stake
- Heavy-gauge copper stem
- Optional sprinkler shield
- Pre-wired with 25 tin-coated No-Ox marine grade wire
- High-temp socket
- Spider Splice ready
Construction:
- Hat and Body : Solid Sand-Cast Bronze
- Stake : Solid PTFE coated Eurometal
- Stem : Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115" wall thickness)
- Socket Assembly : High-temperature composite S8 socket rated to 220degrees C.
- Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Dimensions:
Stem, Body and Hat : 22" tall x 5.5" wide
Stake : 8.5"
Weight : 7 lbs.
Order as Incandescent or LED
CMU1CB Incandscent Lamp Specifications :
12V S8 Wedge Base (35W max.), 25W Lamp included
CMU1CB+CALED2 LED Retrofit Module:
This unique LED module is engineered to replace the incandescent lamps in this CAST path light. The unit is equipped with a plug that mates with the S8 Wedge-Base Sockets used in these fixtures. The heavy-cast module body provides a highly effective heat sink to allow use of two high-power, warm white, 60,000-hr. Cree LED's.
Mounting hardware and anti-corrosion conductive socket grease included.
50,000 hrs. life (L70) Integrated LED light source with superior moisture protection and thermal management.
Brighter than our incandescent version.
Glare-free illumination.
Accepts 8 - 18 volts AC or DC.
Includes fully potted LED driver.
Installs in seconds using existing S8 wedge-base socket
Warm white color temperature (2,700K) and high color rendering index (84 CRI) that closely matches incandescent lighting.
Includes protection from voltage spikes and surges.
Will not interfere with remote control devices - RFI filtering.
Lamp Specifications :
LED Light Source : (2) Cree Warm White LED's with fully potted driver and robust heat management.
Color Temperature : 2800K
Color Rendering Index (CRI) : 84
Input Voltage : 10v to 24v AC or DC
Input Power : 4.4 Watts; 0.85 pf
LED Light output : 270 lm
Fixture output : 270 lm (varies with path light type)
Ambient Temperature Range : -40C to 50C
Life (L70) : 60,500 hrs.
Current Regulation : Transient Voltage Suppressor (rated to 36V)
EMI Filtering : Yes
Reverse Polarity Protection : Yes, polarity independent
Component Details : No electrolytic capacitors, all components rated for high ambient temperatures
Emission Standards : FCC Class B Conducted and Radiated
Environmental : RoHS
Plug/Socket : High-temperature S8 Wedge-Base plug with protective conductive grease
Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
