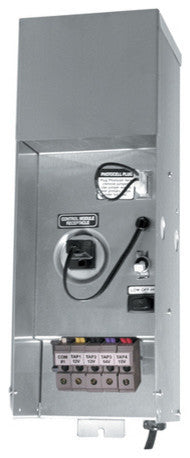

CAST Lighting 300 Watt Journeyman Transformer CJ300SSMT

The CAST Journeymen® Series Multi-Tap Transformers include secondary magnetic circuit breakers and can accomodate up to 10 fixture wires. These transformers are rugged and reliable.

Note: For optimal control, order CAST Timer and CAST Photocell. When both these units are installed in transformer, the photocell turns the lights on at dusk and off at time set on timer.

• High/Low Switch (High setting adds 1 volt to voltage taps).
• Resin-sealed toroidal core - Ensures the highest possible efficiency.
• Full transformer capacity can be loaded into any single voltage tap.
• Voltage taps of 12, 13, 14 and 15V.
• Extra-large 125-amp terminal blocks - To accommodate up to (10) #12/2 wires.
• Secondary magnetic circuit breakers.
• Stainless steel or powder coated steel enclosure.

Specifications :
Enclosure / Housing : Stainless Steel or Powder Coated Steel
Volt-Amps (Watts) : 300W
Secondary Voltage Taps : 12V to 15V

Electrical :
Input : 120V, 60Hz.
Output : 12V, 13V, 14V and 15V
Capacity : 300 Watts
Transformer Core : Epoxy resin encapsulated, magnetic toroid, primary thermal protection.
Secondary Overload Protection : 25 amp magnetic circuit breaker for the common.
Hi-Low Switch : Adds 1 volt to all secondary taps
Power Cord : 6-ft heavy-duty #16/3 AWG power cord with 3-prong grounded wall plug.
Secondary Terminal Blocks : 125 amp rated, extra large.

Listing : cUL 1838 Listed, approved for exterior and interior use.

Dimensions and Weight :

• Width : 5.5"
• Height : 17"
• Depth : 5.5"
• Weight : 19 lbs.

Warranty : Lifetime on core and enclosure, 3-year warranty on electrical components.

Fully field-repairable.
