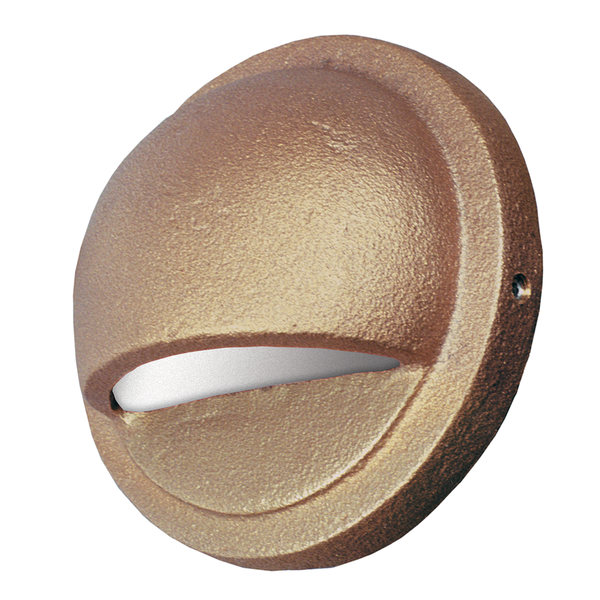

CAST Lighting Deck Light (Halogen or LED)

This compact and attractive solid bronze deck light is a durable and reliable fixture for wall and post mounting. Lifetime warranty.

Available with Halogen (lamp included) or LED (lamp not included)

Construction :
Body : Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws.

Socket Assembly : High-temperature socket.

Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #18/2 lead); socket wire crimped and enviromentally sealed and protected with waterproof shrink tubing and fiberglass sleeve.

Dimensions and Weight :
Body: 3.75" diameter x 1.75" height
Weight: 2 lbs.

Lamp Specifications for CDL1CB HALOGEN
Lamp: 12V, 18W T-5 Xelogen (18W max.)
Lamp included

Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
Special Wiring Instructions :
Since the SCB socket is grounded to the fixture body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer.

Specifications for CDL1CBLED LED

This compact and attractive solid bronze deck light features a robust, water-resistant, integrated LED source. It is a durable and reliable fixture for wall and post mounting. Perfectly suited for aggressive coastal environments. Lifetime warranty on housing and hardware - 5 years on LED module.

• Integrated LED light source with superior moisture protection and thermal management.
• Brighter than our incandescent version.
• Fully encapsulated driver
• Custom-engineered heat sink thermally bonded to solid bronze body
• Replaceable module
• Solid bronze hood and base
• Glare-free illumination
• Pre-wired with 25’ tin-coated No-Ox® marine grade wire
• Spider Splice® ready
