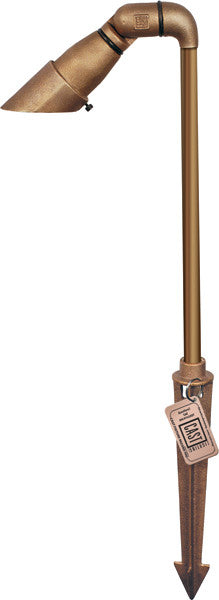

CAST Lighting MR16 Path / Area Light CBAL1CB

This rugged solid bronze MR-16 fixture sits on a 20” stem providing a directional light that extends above plant material. Can be used to light pathways, driveways, or plant material.

• Lifetime warranty
• Solid bronze shroud and bod; Eurometal stake
• Heavy-gauge copper stem
• Extra protection from water intrusion when used in down-lighting applications
• Extra-long shroud for glare control
• Knuckle adjusts to any angleConvex lens to prevent mineral build-up
• Pre-wired with 25’ tin-coated No-Ox® marine grade wire
• High-temp socket with solid nickel contacts
• Includes heat shield to protect socket

• Spider Splice® ready

Construction:

Body : Solid Sand-Cast Bronze

Stem : 18" Heavy Gauge Copper, (unthreaded end to secure in stake with set screw), 0.115" wall thickness.

Knuckle : Solid Sand-Cast Bronze, continuously adjustable, secured with 303 stainless steel Philips Head screw.

Shroud : Solid Sand-Cast Bronze

Stake : Solid Eurometal

O-Rings : Silicone Rubber (double O-Ring under shroud for water protection when facing downwards).

Socket Assembly : High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring, Aluminum heat reflector.

Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.

Dimensions and Weight :

Stem and Body : 20.5" high x 10.25" wide (when extended at 90º angle) ; 2.5" diameter shroud
Stake : 13.5"
Weight : 8 lbs.


Lamp Specifications :

Lamp: 12V MR-16 (50W max.)
Lamp not included


Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
