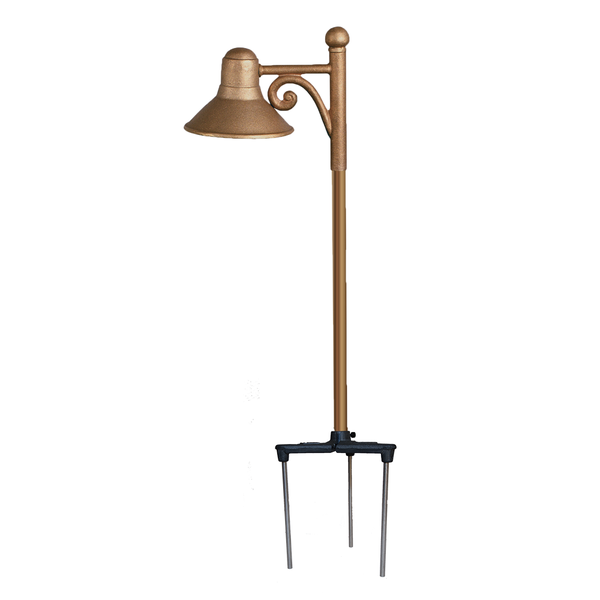

CAST Lighting Savannah Path / Area Light (LED or Halogen)
Cast Lighting- Lifetime Warranty
- Solid bronze hat and vase; PTFE Coated Eurometal stake
- Heavy-gauge copper stem
- Optional sprinkler shield
- Pre-wired with 25 tin-coated No-Ox marine grade wire
- High-temp socket
- Spider Splice ready
Dimensions:
Stem Height (stake top to post top) : 23"
Width (from post to edge of hat) : 8.5"
Width (Hat) : 6"
Stake : 13.5"
Weight : 9.2 lbs.
ORDER AS HALOGEN OR LED
Specifications for CSA1CB (Incandescent)
- Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.)25W Lamp included
- Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 35 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Specifications for CSA1LED2 (LED)
- LED Light Source: 2 Cree LED’s, Life(L70) 62,000 hrs. Color Temp: 2737°K CRI: 82
- Input voltage: 10 to 24V, AC or DC
- Power: 4.41 watts, .4 amps, Power Factor: .91 Volt Amps: 4.85
- Lumen fixture output: 200 lm
- Center Beam Candela: 94
Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
Construction : Hat, Arm and Post Top : Solid Sand-Cast Bronze
Stake : Solid PTFE Coated Eurometal, Talon Stake
Stem : Heavy duty copper, threaded 3/8" NPS (stem top), 1/2" NPT (stem bottom) (0.115" wall thickness)
Socket Assembly : CSA1CB: High-temperature composite S8 socket rated to 220degrees C.; CSA1LED1: High-temperature SCB socket.
Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 35 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing.
Color Temperature : 2800K
Color Rendering Index (CRI) : 84
Input Voltage : 10v to 24v AC or DC
Input Power : 4.4 Watts; 0.85 pf
LED Light output : 270 lm
Fixture output : 270 lm (varies with path light type)
Ambient Temperature Range : -40C to 50C
Life (L70) : 60,500 hrs.
Current Regulation : Transient Voltage Suppressor (rated to 36V)
EMI Filtering : Yes
Reverse Polarity Protection : Yes, polarity independent
Component Details : No electrolytic capacitors, all components rated for high ambient temperatures
Emission Standards : FCC Class B Conducted and Radiated
Environmental : RoHS
Plug/Socket : High-temperature S8 Wedge-Base plug with protective conductive grease
Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
Other Components
- CAST Lighting magnetic toroidal core Transformers : Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
- CAST No-OX Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)
- Astronomical Digital & Mechanical Timers
- Photo Cells
- Seamless non-insulated crimp connections & Heat shrink for wire connections
