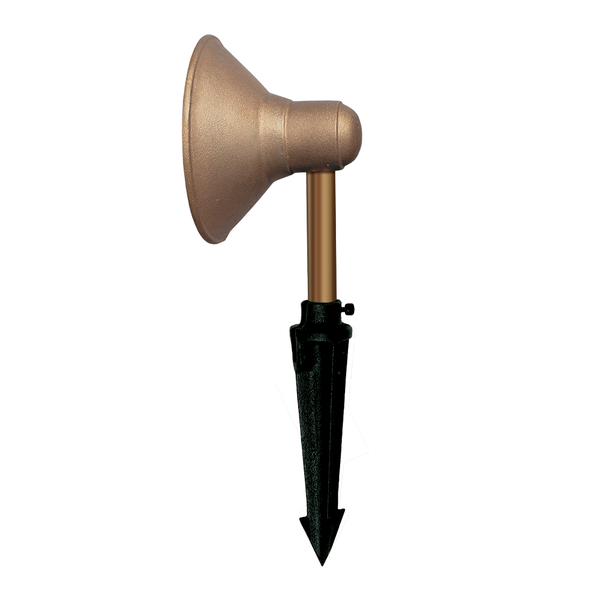

CAST Lighting Wall Washer
Cast Lighting
- Solid bronze shroud and body; Eurometal stake
- Pre-wired with 25 tin-coated No-Ox marine grade wire
- High-temp socket with solid nickel contacts
- Spider Splice ready
Construction :
Shroud : Solid Sand-Cast Bronze
Stake : Solid Eurometal
Stem : 4" Heavy duty copper (unthreaded end to secure in stake with set screws). (0.115" wall thickness)
Lens : Convex borosilicate with silicone gasket to prevent water intrusion.
Socket Assembly : High-temperature composite S8 socket rated to 220degrees C.
Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped to lead wire with tin crimps protected with waterproof shrink tubing.
Dimensions and Weight :
Shroud, Base and Stem : 7" tall x 4.25" wide
Stake : 8.5"
Weight : 5.2 lbs.
Lamp Specifications :
Lamp: 12V S8 Wedge Base (35W max.)
Lamp included
Listing : UL 1838 Listed Low Voltage Luminaire for wet locations
To convert this fixture to LED, purchase the CAST LED Module (CSALED2).
Lamp Specifications :
LED Light Source : (2) Cree XPE with integrated driver in replaceable module.
Color Temperature : 2,800K
Color Rendering Index : 84
Input Voltage : 10v to 24v AC or DC
Input Power : 4.4 Watts; 0.85 pf
LED Light output : 270 lm
Fixture output : 270 lm (varies with path light type)
Ambient Temperature Range : -20C to 50C
Life (L70) : 60,500 hrs.
Current Regulation : Transient Voltage Suppressor (rated to 36V)
EMI Filtering : Yes
Reverse Polarity Protection : Yes, polarity independent
Component Details : No electrolytic capacitors, all components rated for high ambient temperatures
Emission Standards : FCC Class B Conducted and Radiated
Environmental : RoHS
Listing : UL Listing Pending
